Stramatel 452 MS 7120 & 7020

Featuring a 60m viewing distance, the Stramatel 452 MS 7120 & 7020 is a versatile wireless system with the ability to add modules and programming updates. It also includes individual foul displays and programmable team names (Alpha model). Similar to the MS3120 model, it has additional digits for handball fouls. Prices shown include VAT. Contact us for shipping charges.

Manufacturer: Stramatel

PDF DATASHEET

Click here for a downloadable PDF Datasheet

SUPPORTED SPORTS

Basketball (FIBA level 3) - Netball - Handball - Volleyball - Tennis - Table tennis - Badminton - Rink Hockey - Floorball - Futsal - Boxing - Freemode

FEATURES

• 60m max. viewing distance
• 150mm high LED number display
• Player numbers from 4-15
• Display of team scores, game time, timeout, individual fouls, period & ball possession
• Penalties (Handball)
• 10-character programmable team names
• 1000 character scrolling message
• Keyboard control Console
• Integrated horn (116 dB at 1m)
• Power supply: 230V 50-60Hz, 153 VA
• HF radio or wire communication
• FIBA Level 3 approved

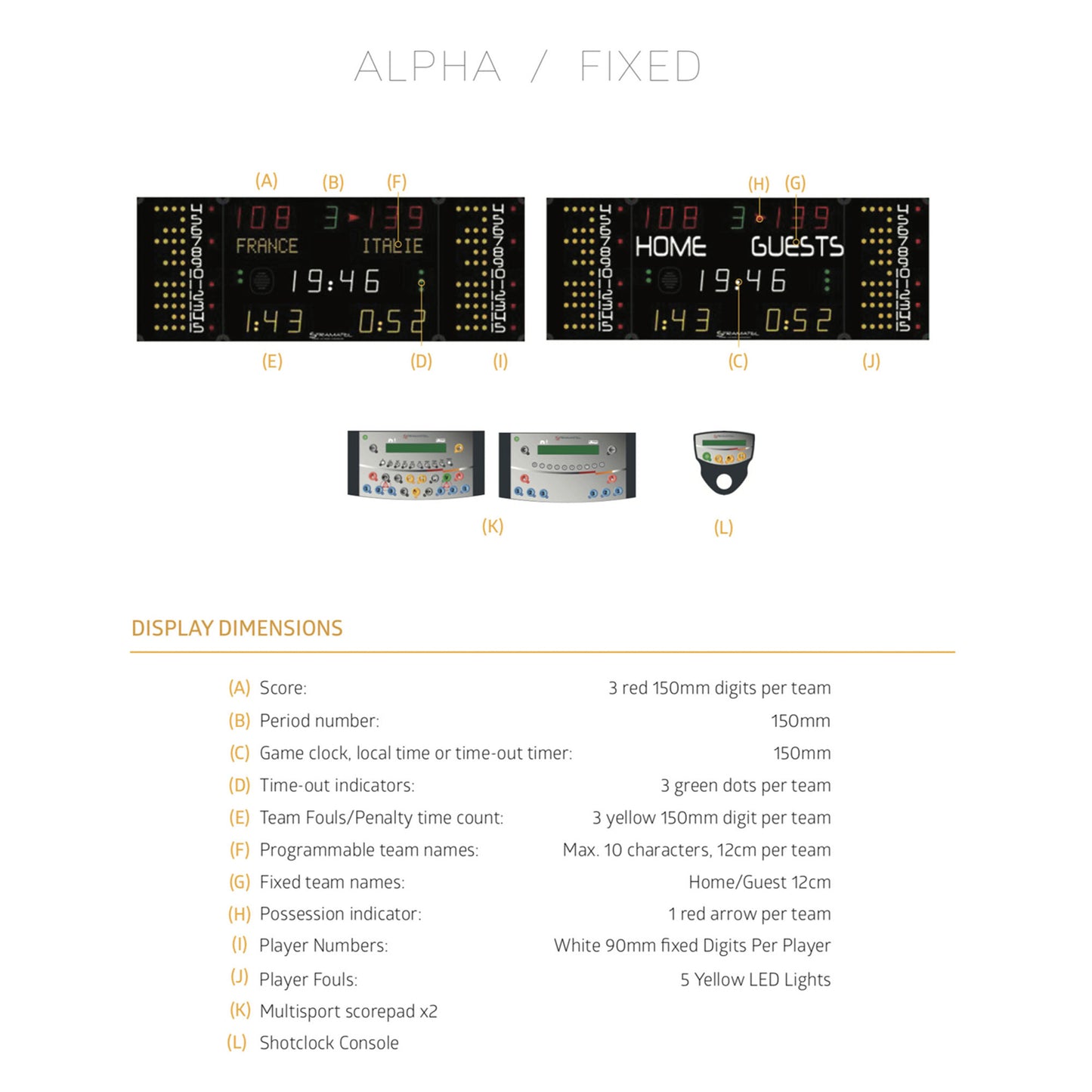

TECHNICAL DATA

• Dimensions: L2700 x H1000 x D90mm.
• Weight: 54kg
• Digit Height: 150mm
• Scoreboard construction: Powder-coated aluminium/ matt polycarbonate
• Optimal viewing distance: 60m
• Viewing angle: 160°
• Power Supply:  100-240V 50-60Hz, 140VA
• Communication: Wired or HF radio

PLEASE NOTE: As with all Stramatel models the control console should be kept on permanent charge when not in use to prolong battery life.

PLEASE CONTACT US FOR SHIPPING CHARGES.

NOTE: To calculate the estimated price excluding VAT divide the cost by 1.2
