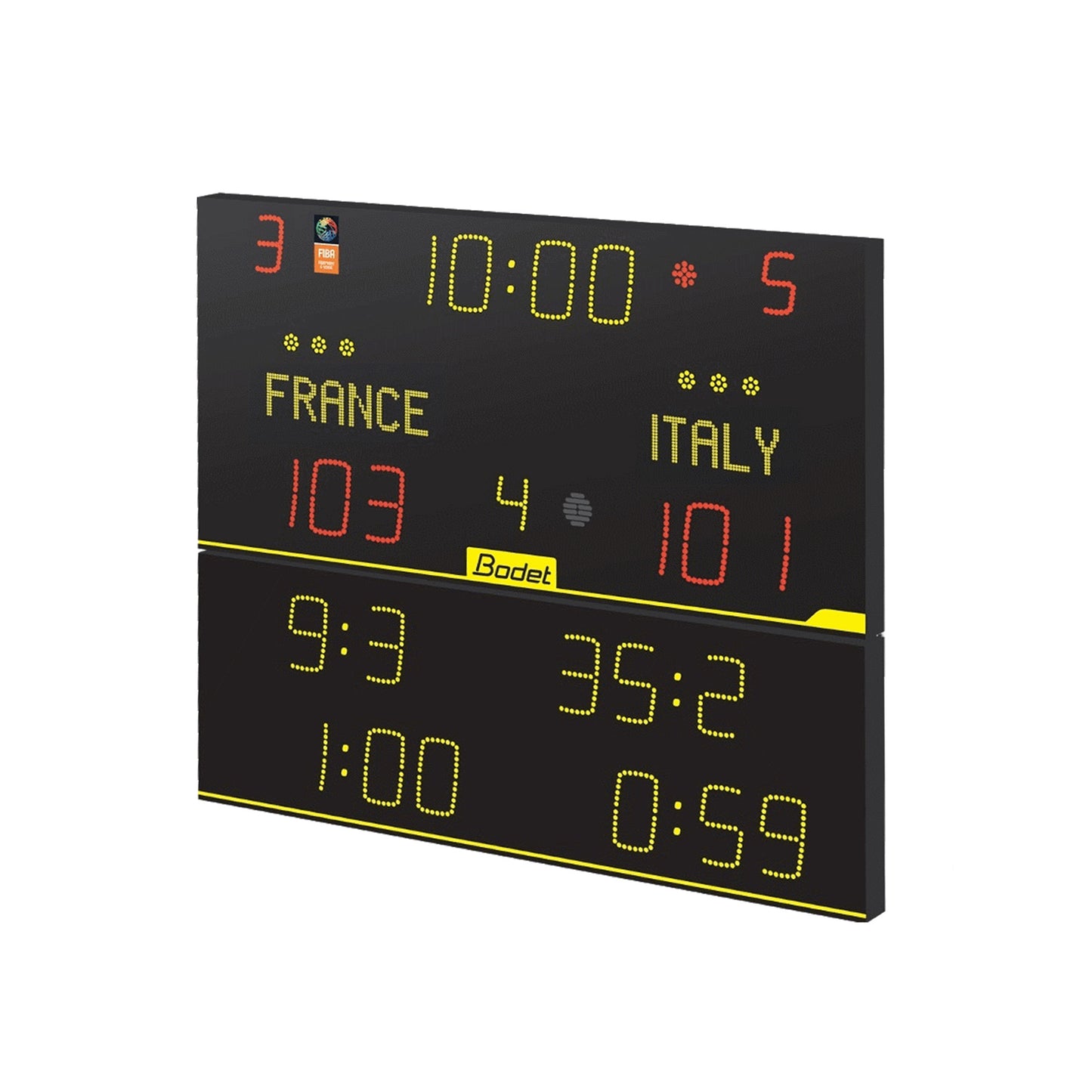

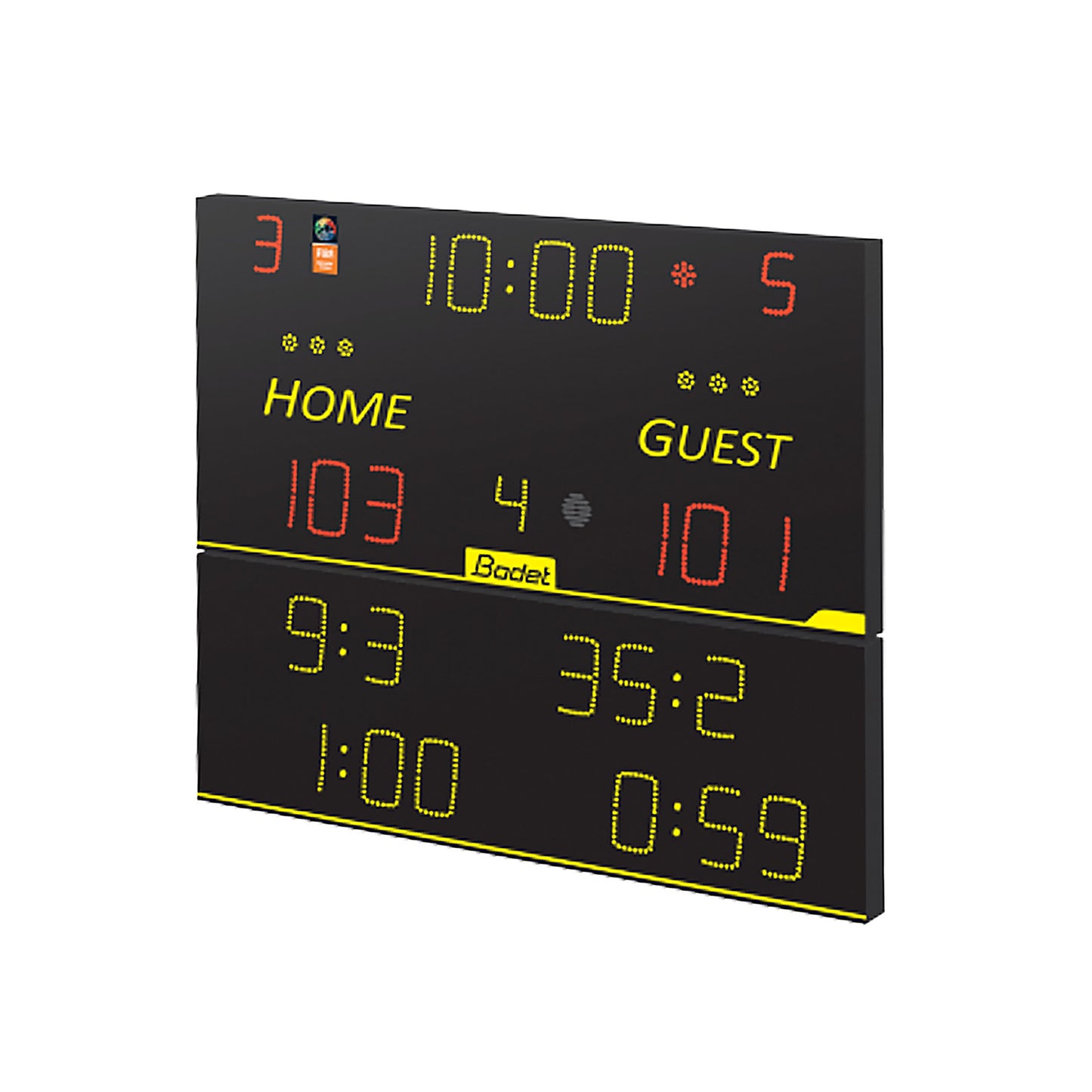

Bodet 8T220 Alpha & 8T220

This scoreboard is ideal for sports halls that host various competitions, such as school, county, and regional events, with a viewing distance of 90m. It is also suitable for displaying set scores for sports such as volleyball, tennis, badminton, etc. Prices shown include VAT. Contact us for shipping charges.

Manufacturer: Bodet

PDF DATASHEET

Click here for a downloadable PDF Datasheet

SUPPORTED SPORTS

Basketball (FIBA level 3) - Netball - Handball (national) - Volleyball (international) Tennis - Table tennis - Badminton - Rink hockey - Floorball - Futsal

FEATURES

• 90m max. viewing distance

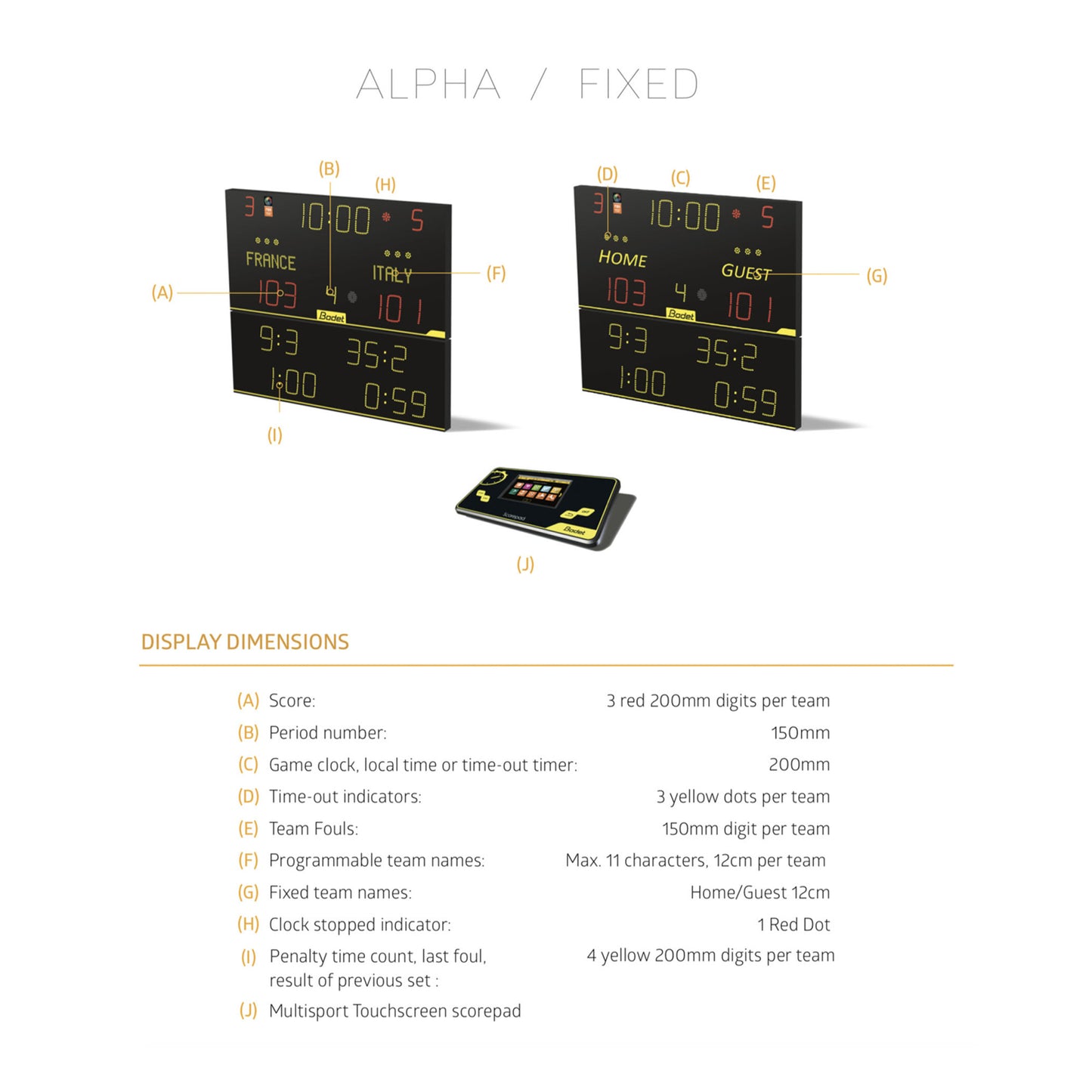

• 20cm high LED score display
• Team names can be programmed from the Scorepad touchscreen keyboard (Alpha)
• Integrated horn (116dB at 1m)
• FIBA Level 3 approved
• Brightness is adjustable via the Scorepad
• 60 Character Scrolling Messages (Alpha)

TECHNICAL DATA

• Dimensions: L2000 x H1700 x D65.5 mm
• Weight: 82kg
• Scoreboard Construction:  Steel
• Optimal viewing distance: 90 m
• Reading angle: 160°
• Power supply: 230V AC, 50/60 Hz
• Power consumption: 210W
• Protection level: 16A circuit breaker – curve D
• Communication: Link by wire or HF radio

PLEASE NOTE: As with all Bodet models the control console should be kept on permanent charge when not in use to prolong battery life.

PLEASE CONTACT US FOR SHIPPING CHARGES.

NOTE: To calculate the estimated price excluding VAT divide the cost by 1.2
