Bodet 8T215-F6 Alpha & 8T215-F6

With a 60m optimum viewing distance using a 15cm high LED display, the Bodet 8T215-F6 Alpha and 8T215-F6 are wireless, modular, multisport indoor systems, perfect for multi-court venues. Score display from 0-199, programmable player numbers and individual fouls. The Alpha model features programmable team names and 60 60-character scrolling messages. The lower board displays the penalty time count, the last foul, the result of a previous set or time-out count. Prices shown include VAT. Contact us for shipping charges.

Manufacturer: Bodet

PDF DATASHEET

Click here for a downloadable PDF Datasheet

SUPPORTED SPORTS

Basketball (FIBA level 2 and 3) - Netball - Handball (National) - Volleyball (International) - Tennis - Table tennis - Badminton - Rink Hockey - Floorball - Futsal

FEATURES

• 60m max. viewing distance
• 150mm high LED number display
• 7 character team names can be programmed from the touchscreen scorepad (ALPHA)
• 60-character scrolling message (ALPHA)
• Programmable player numbers and individual fouls
• Touchscreen scorepad included
• Integrated horn (120dB at 1 metre).
• Brightness adjustable via the Scorepad. I can be adjusted during a match.
• HF radio or wire communication
• FIBA Level 2 and 3 approved

TECHNICAL DATA

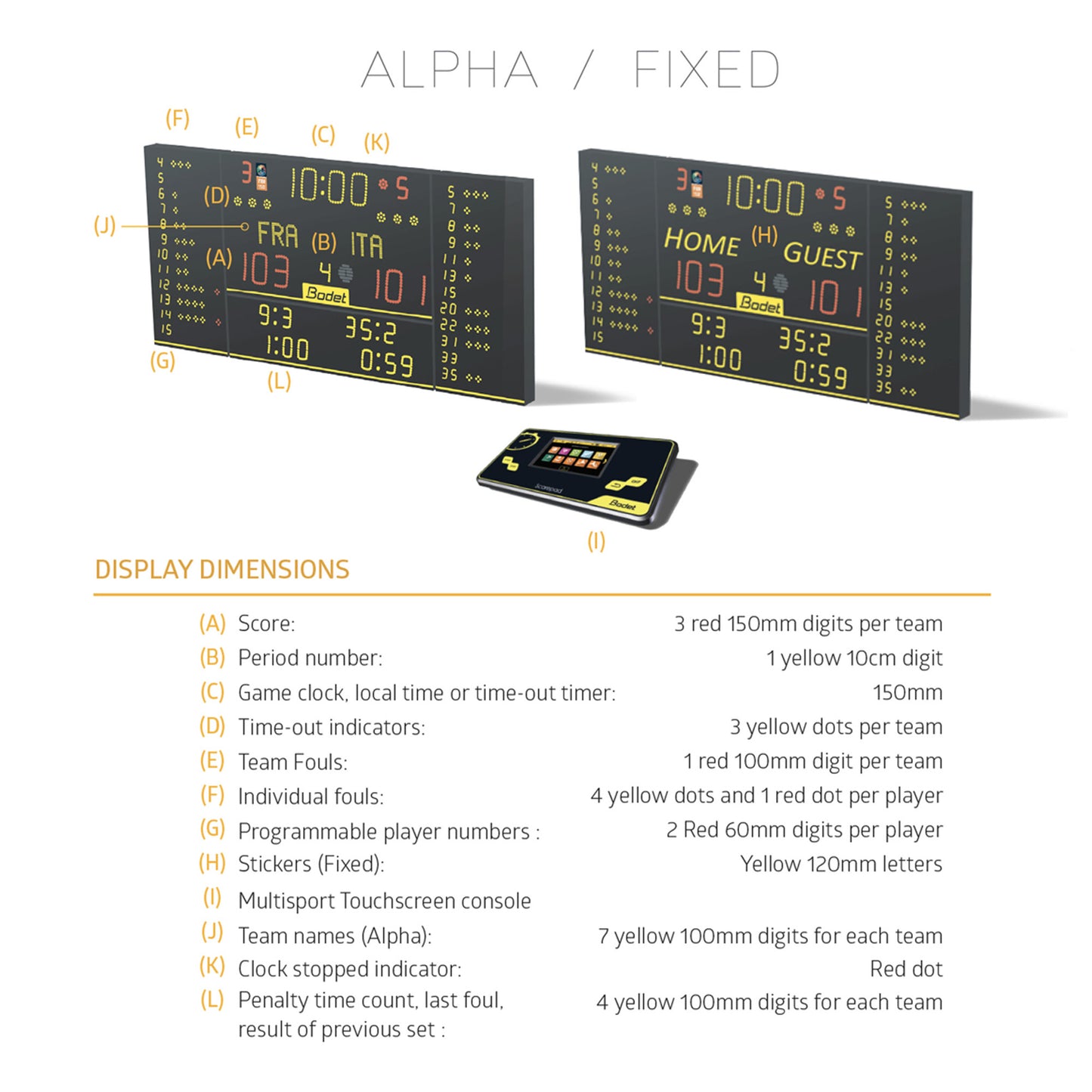

• Dimensions: L2130 x H1000 x D65.5mm.
• Weight: 90kg
• Scoreboard construction: Steel/Polycarbonate
• Protection ratings: IP20, IK09 (DIN standard 18032)
• Optimal viewing distance: 60m
• Viewing angle: 160°
• Power supply:  230V AC, 50/60Hz
• Electrical protection:  16 A circuit breaker - curve D
• Communication: Link by wire or HF radio

PLEASE NOTE: As with all Bodet models the control console should be kept on permanent charge when not in use to prolong battery life.

PLEASE CONTACT US FOR SHIPPING CHARGES.

NOTE: To calculate the estimated price excluding VAT divide the cost by 1.2
