Bodet 8025-F6 Alpha & 8025-F6

With a 120m optimum viewing distance using a 25cm high LED display, the 8025-F6 Alpha and 8025-F6 are wireless indoor scoreboards, perfect for medium-sized venues. Score display from 0-999, multi-sport capabilities, individual player fouls and programmable player numbers. The Alpha model features programmable team names and 60 60-character scrolling messages. Prices shown include VAT. Contact us for shipping charges.

Manufacturer: Bodet

PDF DATASHEET

Click here for a downloadable PDF Datasheet

 SUPPORTED SPORTS

Basketball (FIBA level 2 and 3) - Netball - Handball (National) - Volleyball (International) - Tennis - Table tennis - Badminton - Rink Hockey - Floorball - Futsal

FEATURES

• 120m max. viewing distance
• 250mm high LED number display
• Programmable player numbers
• Individual player fouls
• 11 character team names can be programmed from the touchscreen scorepad (ALPHA)
• 60-character scrolling message (ALPHA)
• Touchscreen scorepad
• Integrated horn (120dB at 1 metre)
• Brightness is adjustable via the Scorepad. It can be adjusted during a match
• HF radio or wire communication
• FIBA Level 2 and 3 approved

TECHNICAL DATA

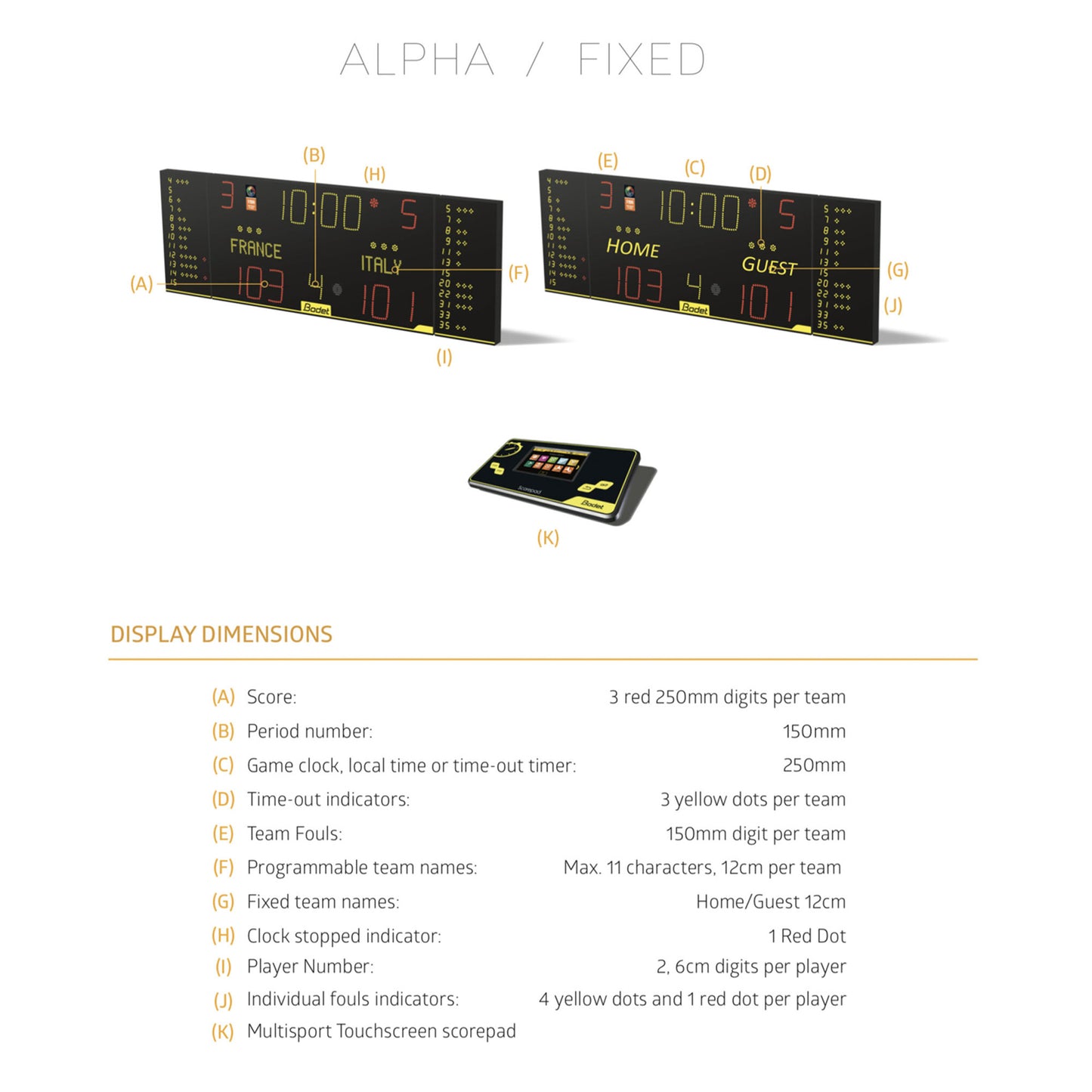

• Dimensions: L2930 x H1000 x D65.5mm.
• Weight: 80kg
• Scoreboard Construction: Steel
• Protection ratings: IP20, IK09 (DIN standard 18032)
• Optimal viewing distance: 120m
• Viewing angle: 160°
• Power supply:  230V AC, 50/60Hz
• Power consumption:210W
• Electrical protection:  16 A circuit breaker - curve D
• Communication:  Scorepad/8020 link by wire or HF radio

PLEASE NOTE: As with all Bodet models the control console should be kept on permanent charge when not in use to prolong battery life.

PLEASE CONTACT US FOR SHIPPING CHARGES.

NOTE: To calculate the estimated price excluding VAT divide the cost by 1.2
