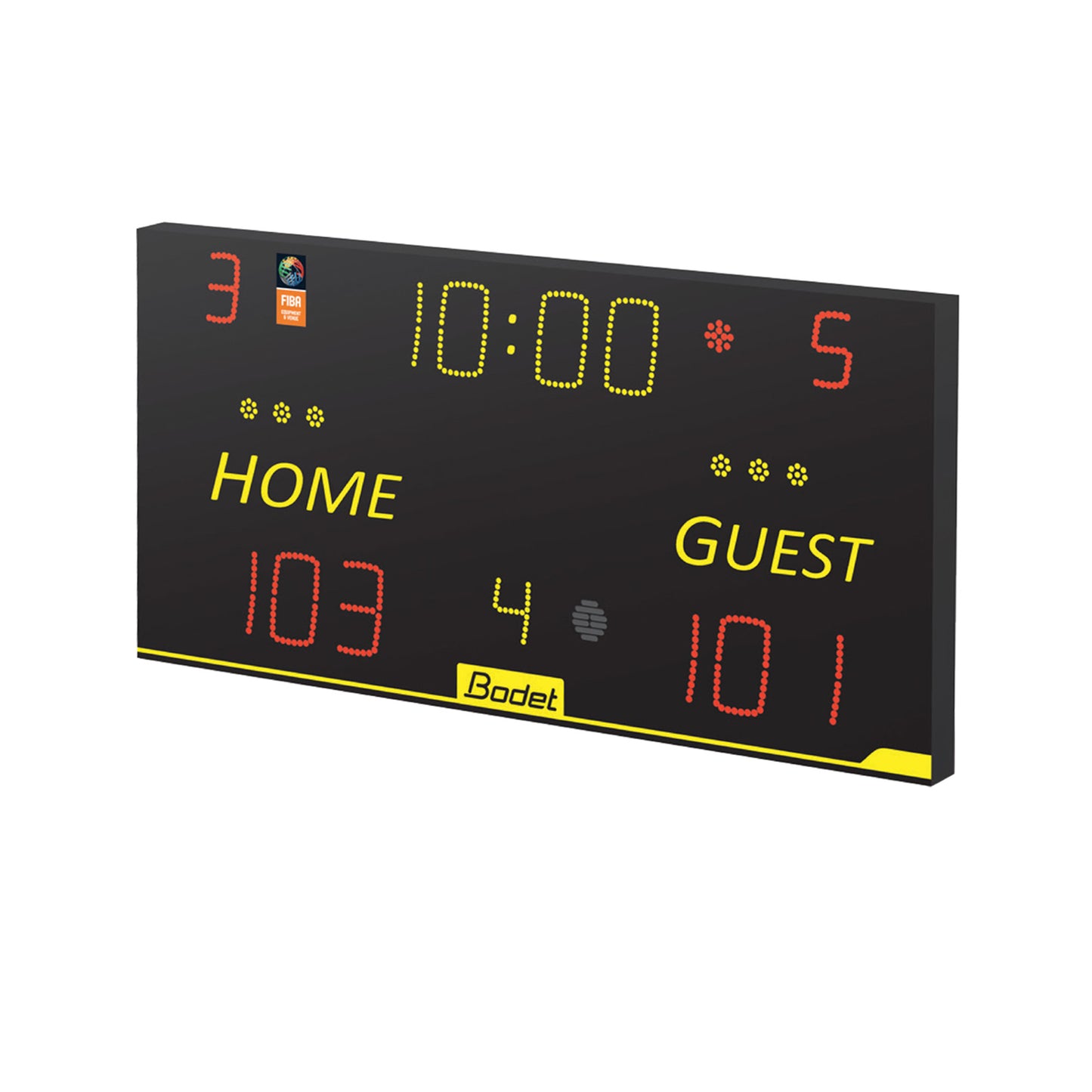

Bodet 8020 Alpha & 8020

With 90m optimum viewing distance using a 20cm high LED display. The Bodet 8020 is a wireless indoor system, perfect for multi-court venues, with a score display from 0-999 and multi-sport capabilities. The Alpha model features programmable team names and 60 60-character scrolling messages. Prices shown include VAT. Contact us for shipping charges.

Manufacturer: Bodet

PDF DATASHEET

Click here for a downloadable PDF Datasheet

SUPPORTED SPORTS

Basketball (FIBA level 2 and 3) - Netball - Handball (National) - Volleyball (International) - Tennis - Table tennis - Badminton - Rink Hockey - Floorball - Futsal

FEATURES

• 90m max. viewing distance

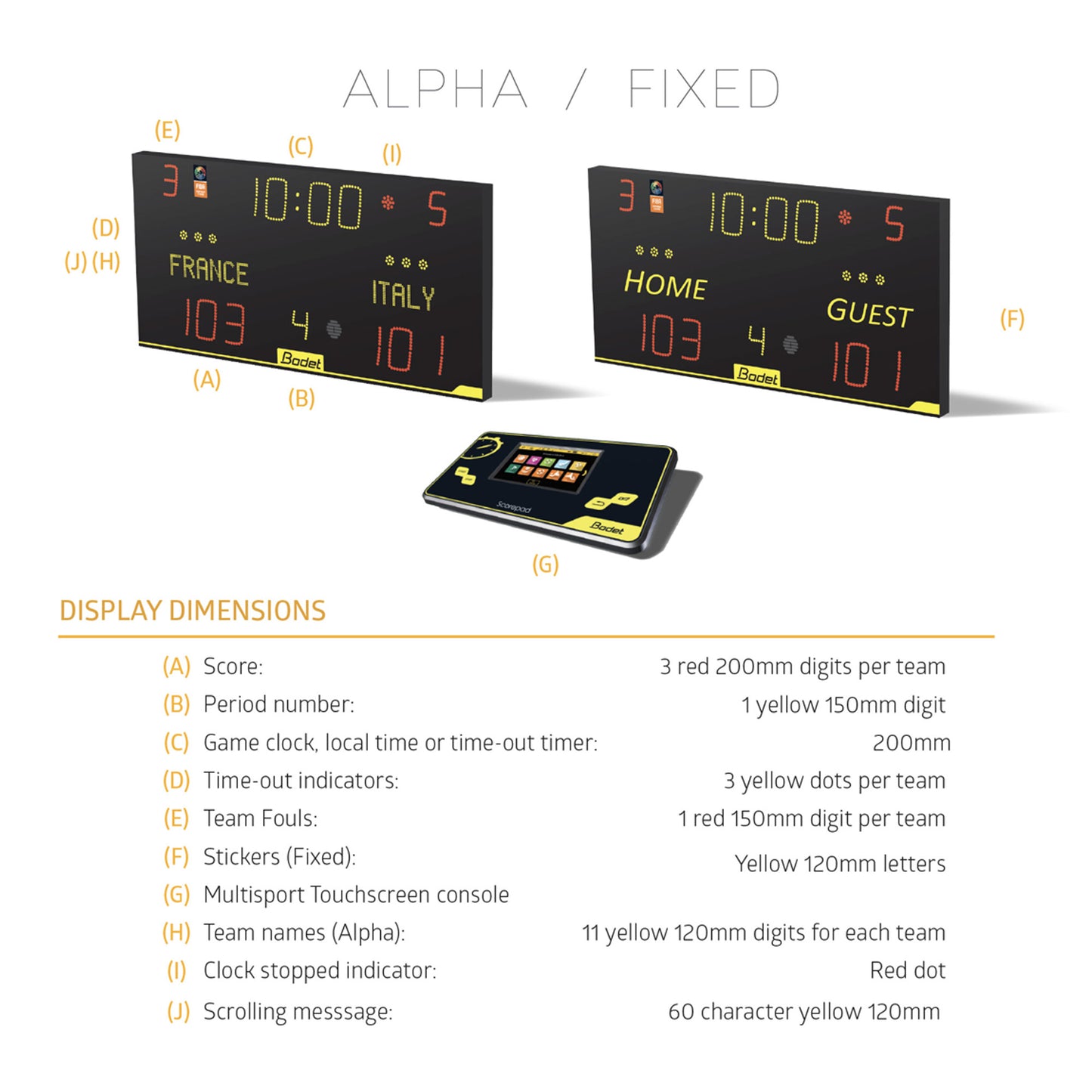

• 200mm high LED number display
• 11 character team names can be programmed from the touchscreen scorepad (ALPHA)
• 60-character scrolling message (ALPHA)
• Touchscreen scorepad included
• Integrated horn (120dB at 1 metre).
• Brightness is adjustable via the Scorepad. It can be adjusted during a match.
• HF radio or wire communication
• FIBA Level 2 and 3 approved

TECHNICAL DATA

• Dimensions: L2000 x H1000 x D65.5mm.
• Weight: 50kg
• Scoreboard construction: Steel/Polycarbonate
• Protection ratings: IP20, IK09 (DIN standard 18032)
• Optimal viewing distance: 90m
• Viewing angle: 160°
• Power supply:  230V AC, 50/60Hz
• Electrical protection:  16 A circuit breaker - curve D
• Communication:  Scorepad/8020 link by wire or HF radio

PLEASE NOTE: As with all Bodet models the control console should be kept on permanent charge when not in use to prolong battery life.
